8 Tips To Create Beautiful Drawings In Revit
Most architects retrieve that Revit is a terrible presentation tool. They are wrong. And this guide is going to bear witness it. Yous don't need sketchup or Photoshop to create interesting conceptual documents.
If yous like creating beautiful views, brand sure to bank check out our brand new mysterious, sensual learning package called Design .
In this post, we are going to use the projection provided by a Revit Pure reader: Wolfgang Sirtl. The name of the project is: Beckerstraße. It is a 17 apartments edifice in Ingolstadt, s Germany. Bank check out this firm website over here: http://www.qsp-architekten.de/
Plenty babbling! Let's get started.
1- Adapt LINE WEIGHT
A common criticism of Revit is the difficulty to adjust the line weight of elements, specially in elevations and 3D views. In the plan view below, you can run across that the line thickness hierarchy is not peachy… the drawing appears flat. The cut walls line thickness is set to 4, pregnant it will print at .35mm. That's pretty thin.
Allow's go to the Line Weights menu. Get to the Additional Settings dropdown menu in the Manage tab. Select the Line Weights tool. Adjust the number four thickness for the correct scale. In the example below, we boost the thickness to 0.5mm. The drawing looks much meliorate!
The Line Weights menu is not the only way to bear on the thickness. The Linework tool (shortcut: LW) allows you to replace the style of a single line. In the case below, nosotros override a 3D edge to a purple dashed line. Drag the bluish dot to adapt the line override boundary.
ii- UNDERSTAND WHICH VISUAL STYLE TO Employ
Revit offers 6 unlike visual styles. Retrieve carefully most which 1 to apply. For conceptual views, Consistent Colors is often a great choice. Hidden Lines might also exist interesting. When you are ready for images that are more realistic, the Realistic manner and rendering.
A disruptive feature of Revit is the difference between the Graphics and Appearance properties of a material. The settings in Graphics volition be used in Wireframe, Hidden Lines, Shaded and Consequent Colors styles. The appearance settings, where you can set image textures, are used for Realistic, Raytrace and renderings.

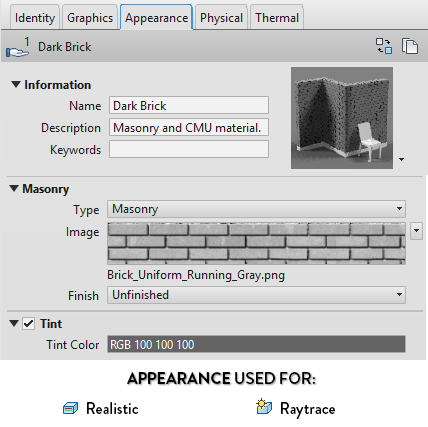

In the image below, nosotros adapt a brick fabric. In the Graphics tab, we set up a line pattern and a color to be used in shaded/consistent colors visual fashion. In the appearance tab, nosotros set an actual brick texture image.
As y'all tin can come across below, Consistent Colors will display materials using line pattern, while Realistic volition display the fabric using image textures.
3- CREATE A POCHE CUT STYLE
For presentation documents, y'all probably don't want to see a agglomeration of wall and floors layers. For case, this is what a "default" department-perspective will look like.
To requite more than punch to this drawing, let's create a poche for all walls, floors, roofs and columns elements. Go to the Visibility/Graphics carte past using shortcut VG. Set a dark solid colour fill for the cut pattern of all elements, except topography.
As you lot can see beneath, the drawing is suddenly more much interesting.
This technique can likewise be used in regular sections and plan views.
4- MASTER THE SHADOWS
Fourth dimension to use your nighttime wizardry skills to create shadows.
There is 2 types of shadows in Revit: Cast Shadows and Ambient Shadows.
You tin can click on the pocket-size sphere icon at the bottom of your screen to actuate cast shadows. Simply the best way to exercise it is to go to the Graphic Display Options menu past clicking on the cube at the bottom of your screen.
Woah! That's way too dark. Go back to Graphic Brandish Options bill of fare and and then to the Lighting submenu. Gear up the shadows intensity between 10 and 15.
Better. But we demand Ambience Shadows. Go back to the shadows submenu and actuate the pick.
That's information technology! At present that's a skillful looking view. The simply problem with Ambience Shadows is that yous tin't control the intensity of the effect. In black and white views, it sometimes turn out to exist too intense.
Hey bro! Don't forget to cheque out the DESIGN learning package. Information technology'south the issue of 2 years of enquiry and experimentation to assistance you lot create cute, gorgeous drawings using Revit.
five- ACTIVATE ANTI-ALIASING

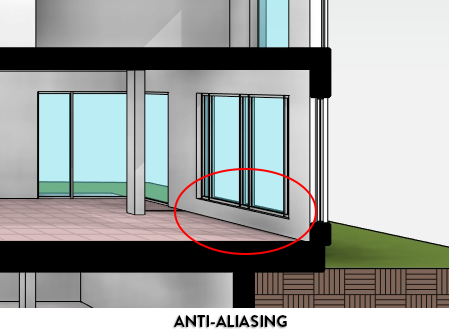

Aliasing occurs in a drawing when angled lines appear pixelated. Get to the Graphic Brandish Options carte. Nether "Model Display", check the "Smooth lines with anti-aliasing" box.
6- USE CUSTOM ENTOURAGE
The default trees and entourage characters in Revit are not pretty. If yous want to show people in your views without having to use Photoshop, your best bet is to create or download custom families.
In the example below, we populate the section-perspective with default Revit entourage RPC families. Yuck.
Let'southward fix the image by using custom made entourage families. Better, isn't it?
Our DESIGN packet teaches you how to create custom entourage families. It also contains some of them to make your views better.
vii- Sympathize HOW TO USE GRAPHIC OVERRIDES
By default, the graphic styles of all model elements are controlled by the Object Way menu and the textile assigned. For example, the wall below has a concrete material assigned, which will determine the patterns. The line thickness is controlled in the Object Style menu, located in the Manage tab
What if you lot want to alter the visual style of this wall, but but in a specific view? That's when you have to utilise overrides. In the image beneath, we use multiple overrides to bear upon the graphic display of the wall.
To create presentation documents, you take to use overrides to affect an entire cartoon. This way, you can have both a construction program view and a presentation plan view with completely unlike graphic styles in the same model.
The chart below explains how Revit decides which tool to prioritize when drawing an element. That ways an element with a Linework override will accept priority over an element affected by a view filter or by a phasing setting. The low priority settings commonly have a broad effect on the projection at large, while the high priority are usually specific to single elements.
For presentation purpose, the Visibility/Graphics card is useful to overrides all elements in the view. And so, yous can make adjustments on specific elements by using tools like Override Graphics In View and Linework.
8- USE COLORED Punch IN Black AND WHITE VIEWS
Black and white views can be charming. In theory, the Subconscious Lines style is always blackness and white. Just it is actually possible to set up a colored override to a specific chemical element. In the paradigm below, nosotros modify the glass material and set a solid fill surface design in the background. The blue tint creates an interesting punch to the view.
We're not washed my friend. Revit is dark and total of mysteries. Do you want to unlock more hidden features and unleash infinite beauty? Check out our Blueprint package. Information technology contains tips to master Revit graphic features. Yous will also learn how to create beautiful materials, gorgeous renderings and much more than. Download the sample chapter most 3D views.
